      SKU: 4ZONE

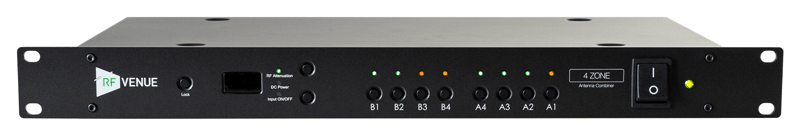

      4 ZONE™

      MAP: $889 USD

      The 4 ZONE active antenna combiner takes the complexity and expense out of multi-zone wireless microphone projects. The 4 ZONE combines up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms. Expand your wireless microphone system's reach at an affordable price.

      Where To Buy
      hero-cms-home

      Key Features & Benefits

      Single Rack Space A unique one rack space design allows microphones to operate in up to four separate coverage areas.
      Keeps you Covered Seamlessly cover wireless microphones between building locations or indoor and outdoor areas.
      Configurer as needed User configurable to allow which zones are active.

      About the Product

      Product Setup

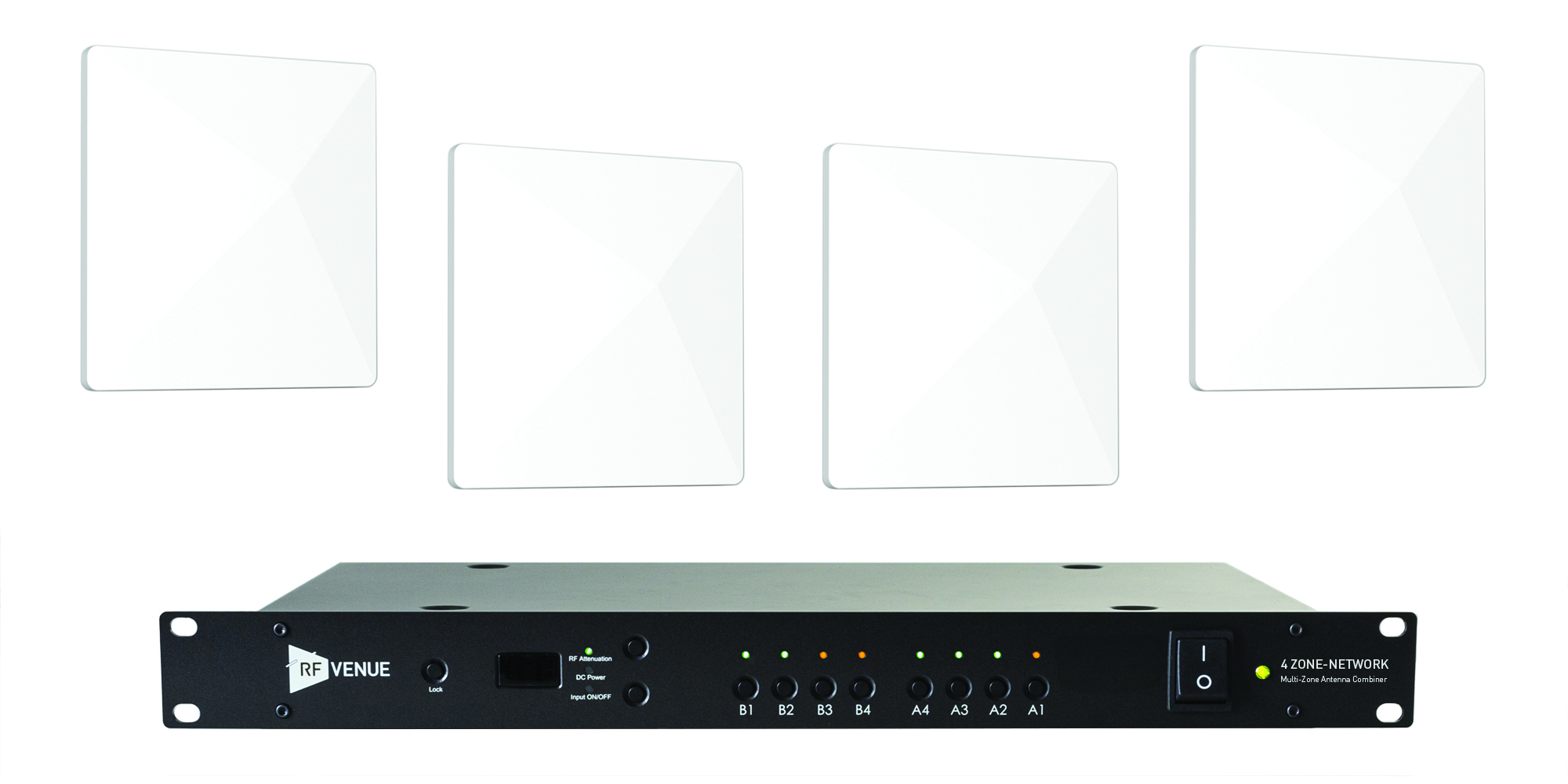

      When used in conjunction with up to four Diversity Fin Antennas and one or more DISTRO4 or DISTRO9HDR antenna distributors, 4 ZONE completes a turnkey package for any multi-zone wireless microphone project across any brand wireless audio system. The 4Zone is also compatible with the D-ARC, CP-ARC and RF Spotlight antennas. For larger coverage areas, pairs well with our OPTIX2-S3 RF over Fiber Product.

      What's Included

      SKU: 4ZONE - 4 Zone Antenna Combiner, (2) BNC jumpers, (1) AC power cord

      Related Products

      Most Common Questions Asked

      What’s the primary application for a multi-zone antenna combiner?

      A Multi-zone antenna combiner will let you manage and balance  coverage over multiple rooms, buildings, etc.

      How many inputs and outputs does the 4Zone combiner provide?

      4 A&B pairs (8 antennas)

      1 output pair (A&B) With variable attenuation

      4Zone easily allows antenna balancing while minimizing crosstalk.
