      SKU: BPF470T560, BPF560T608, BPF470T530, BPF530T590, BPF470T698, BPF470T698

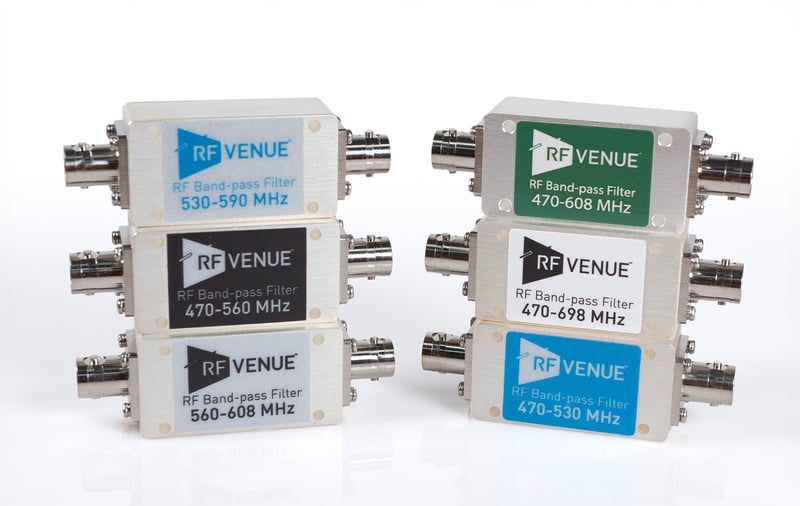

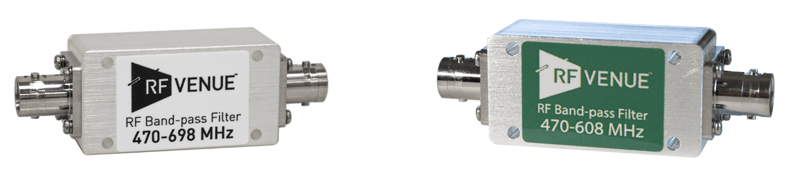

      Band-pass Filters

      MAP: $419 USD

      RF Venue band-pass filters help eliminate "out of band" signals that can saturate the front end of wireless microphone receivers, greatly improving dynamic range.

      Where To Buy
      hero-cms-home

      Key Features & Benefits

      Multiple Options Available 470-608 MHz, 470-698 MHz, 470-560 MHz, 470-530 MHz, 530-590, and 560-608 MHz
      Small Size 3" x 1.75" footprint
      Easy to Add Requires no power or user configuration

      About the Product

      470-698 MHz Band-pass Filter Compatibility

      • Works with most wireless microphones

      470-530 MHz Band-pass Filter Compatibility

      • Shure G50, G1
      • Audio-Technica DE2

      470-560 MHz Band-pass Filter Compatibility

      • Shure G50 and H5
      • Sennheiser A and A1
      • Sennheiser 6000/9000 Low Band
      • Lectrosonics Blocks B19, B20 and B21

      530-590 MHz Band-pass Filter Compatibility

      • Audio-Technica EE1
      • Shure H50

      560-608 MHz Band-pass Filter Compatibility

      • Shure J1 and J3
      • Sennheiser G
      • Sennheiser 6000/9000 High Band
      • Lectrosonics Blocks B22 and B23

      Simply connect the band-pass filter in-line with your wireless microphone remote antenna connections for 40 dB of side rejection.

      Product Setup

      What's Included

      Each SKU includes 1 filter

      Most Common Questions Asked

      Can I use the band-pass filters with active antennas?

      Band-pass filters do not pass DC bias required for active antennas.

      Can I use band-pass filters with IEMs or other transmit applications?

      No, these filters are not for use in transmit applications.

      How many do I need for a diversity wireless microphone system?

      Two filters are required for diversity systems.
