SKU: DISTRO4

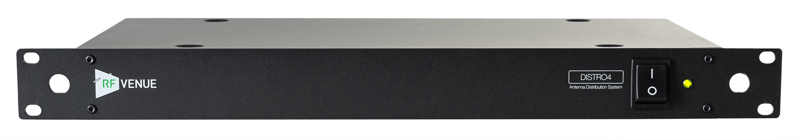

DISTRO4™ - With Cascade

MAP: $599 USD

The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately).

The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit's cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.

Where To Buy Learn More

Key Features About Setup What's Included Resources FAQs

Key Features & Benefits

Share one set of antennas Reduce IMD and crosstalk caused by using antennas for each receiver

Efficient Supports up to 5 Receivers including 12VDC Power

Compatible Works with all manufacturers receivers

About the Product

Eyebrow Text

What Our Customers Have to Say

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nullam varius ex sed augue dictum accumsan. Morbi malesuada finibus libero, vel fringilla ex luctus et. Nullam congue, augue vitae rutrum pretium, nibh erat mattis ipsum, et lacinia lectus quam eu eros. Duis pellentesque, dolor vitae vestibulum consectetur, tortor eros ornare dui, in varius est magna et orci. Phasellus lobortis lorem enim, in iaculis eros varius molestie.

Product Setup

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4. Included Accessories: (1) AC cable, (4) DC cables, (10) BNC jumpers *Please note - 4 DC ports are provided for powering receivers, for a fifth receiver, an external power supply is required.

What's Included

SKU: DISTRO4 - DISTRO4 Antenna Distribution System, (10) BNC jumpers, (4) DC jumpers, (1) AC power cord

Specifications and Product Resources

View All Resources

Most Common Questions Asked

How is the DISTRO4 compared to Sennheiser or Shure’s offering?

Th Distro4 has an active cascade output: which provides a cleaner output vs. a buffered output. The Distro4 connects directly to AC line voltage, instead of a wall wart.

Does the DISTRO4 work with any brand antenna?

Yes

Does the DISTRO4 provide power to receivers in the rack?

Yes - has 4 DC jacks
